Technical Specications:

Unit Weight: .84 lbs (.38 kg)

Packaged Weight: ~1.6 lbs (.8 kg)

Input Voltage: 10 to 16VDC

Operating Current: <.14 A @ 13.8VDC*

Approvals: FCC(USA),IC(Canada),ETSI(Europe)Certied

Inputs: 8**

Input Control Current: <.01A @ 13.8VDC nominal

Outputs: 8**

Output Current: 5A Max per output (30A combined total all outputs)

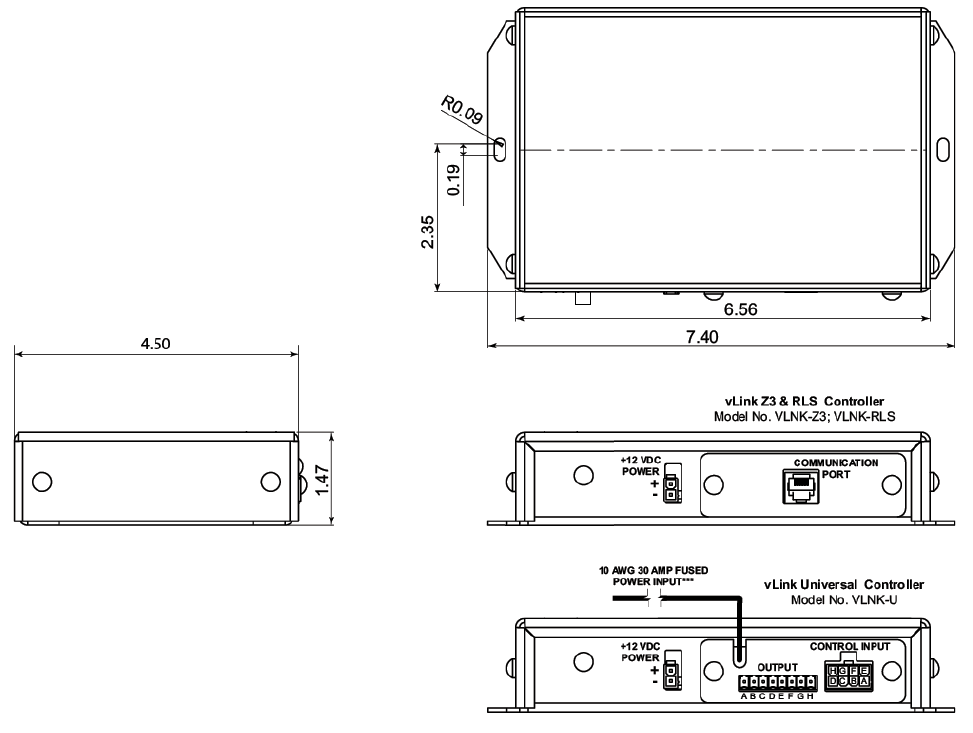

Dimensions:

*Excluding output load current for Universal Output version

**Universal Output version only

***Route the red 10AWG wire to a high current +12VDC power source. You may extend this wire by splicing a longer section of like wire as

necessary. It’s very important that this wire be protected by a user supplied fuse installed near the +12VDC source. The fuse rating should be

about 125% of the total current for all outputs combined but must not exceed 30A.
